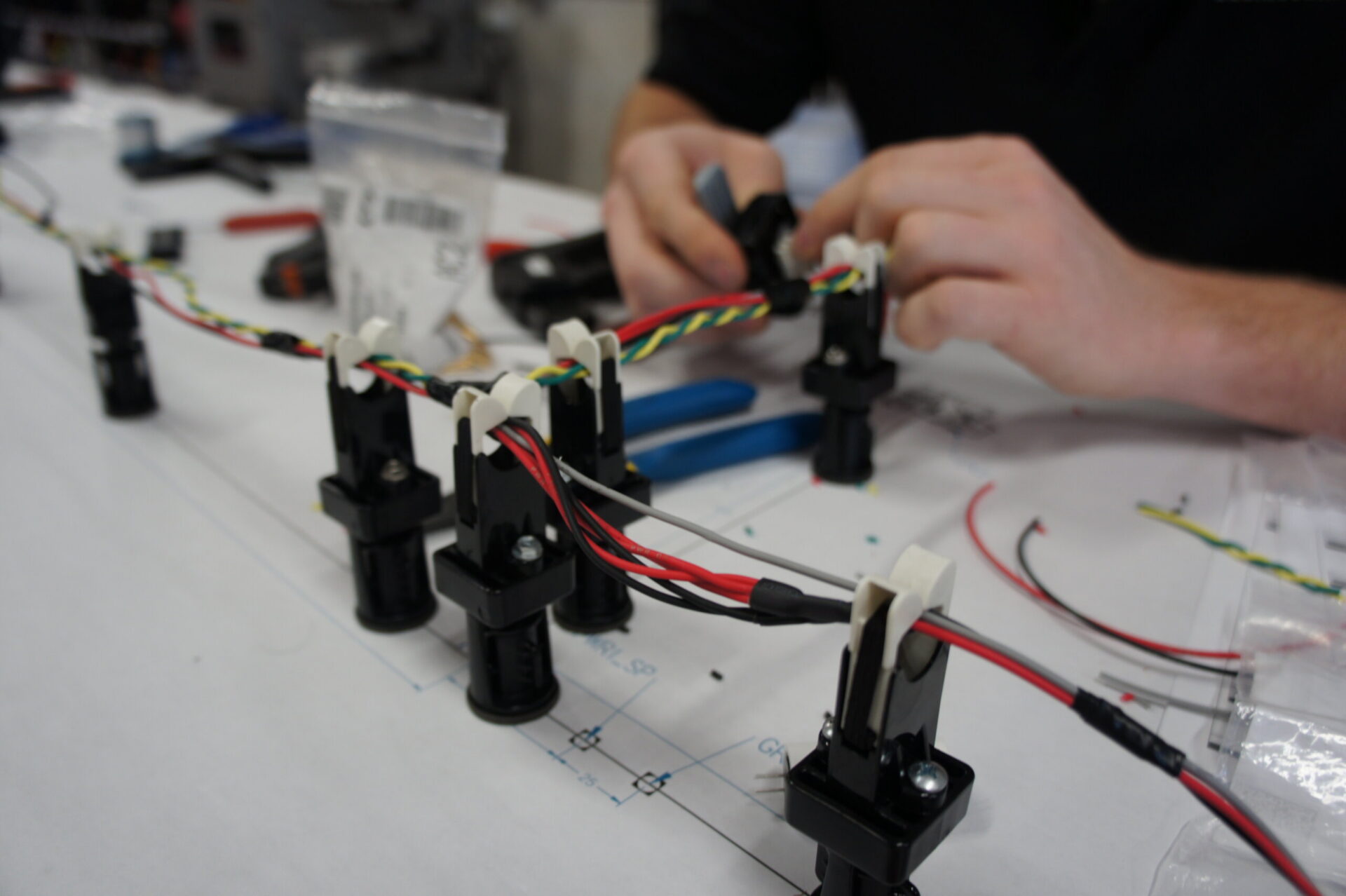

Hands wiring a small robotic frame on a white workbench, connectors and multicolored wires visible (blurry photo).

Wire Harness Prototype Development

We help customers build, test, validate, and refine electrical systems before committing to production.

Rapid Wire Harness Prototypes That Keep Development Moving

Prototype development is often where electrical design meets reality.

RFA Engineering provides rapid wire harness prototype development to help customers build, test, validate, and refine electrical systems before committing to production.

For time-sensitive programs, RFA routinely supports 2–4 week prototype timelines, depending on parts availability, helping customers keep development schedules moving.

Start With a Drawing—or Just an Idea

You don’t need a completely finished harness design to get started.

RFA can develop prototypes from:

Existing drawings
CAD models
Customer concepts
Existing harnesses
Schematics
Early-stage designs requiring refinement

Engineering support can include CAD modeling, 2D drafting, reverse engineering, schematic probing, component selection, and alternative solution development before the harness is built.

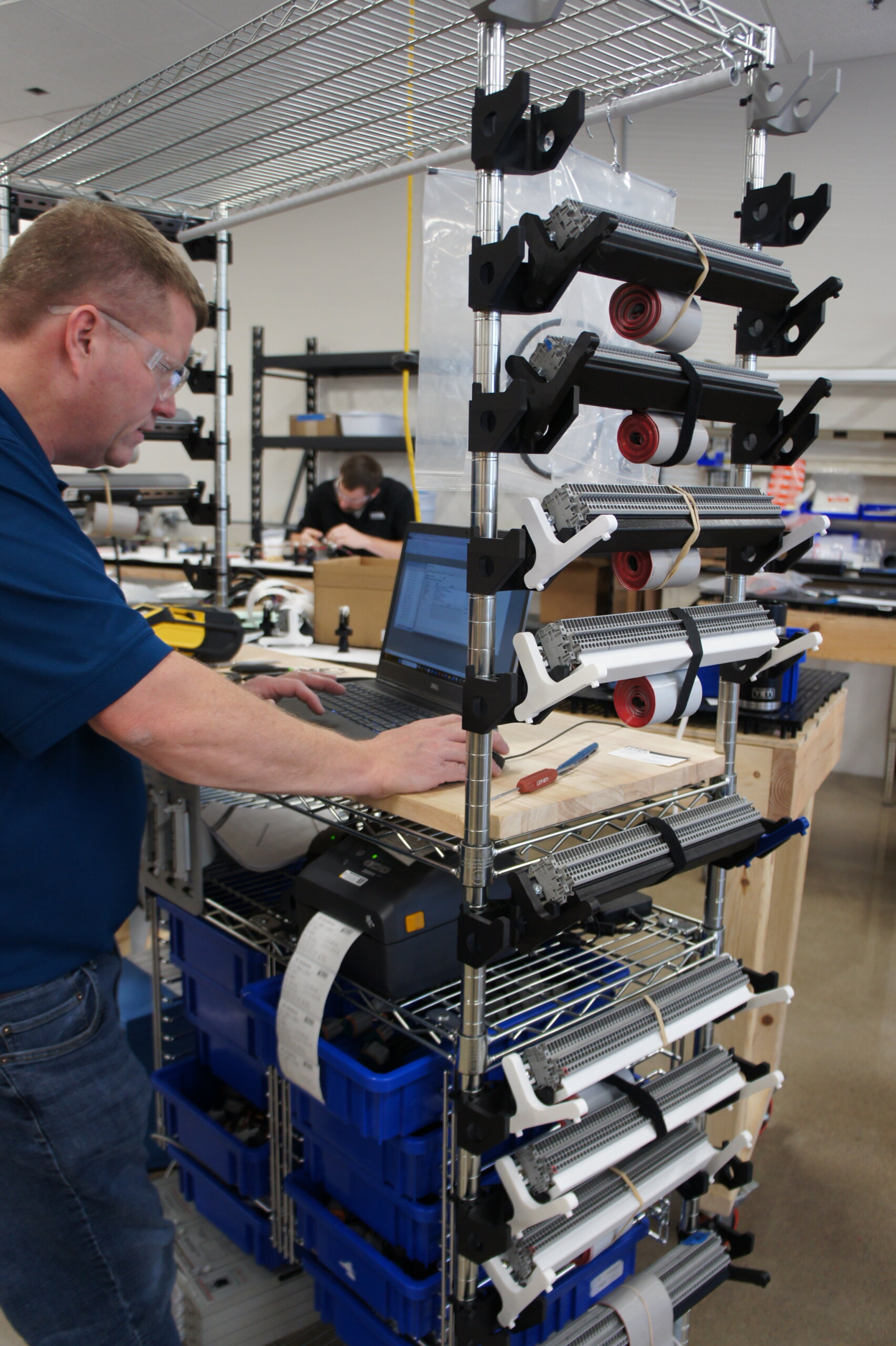

Man in safety glasses typing on a laptop beside a tall rack of cable harnesses and spools in a workshop.

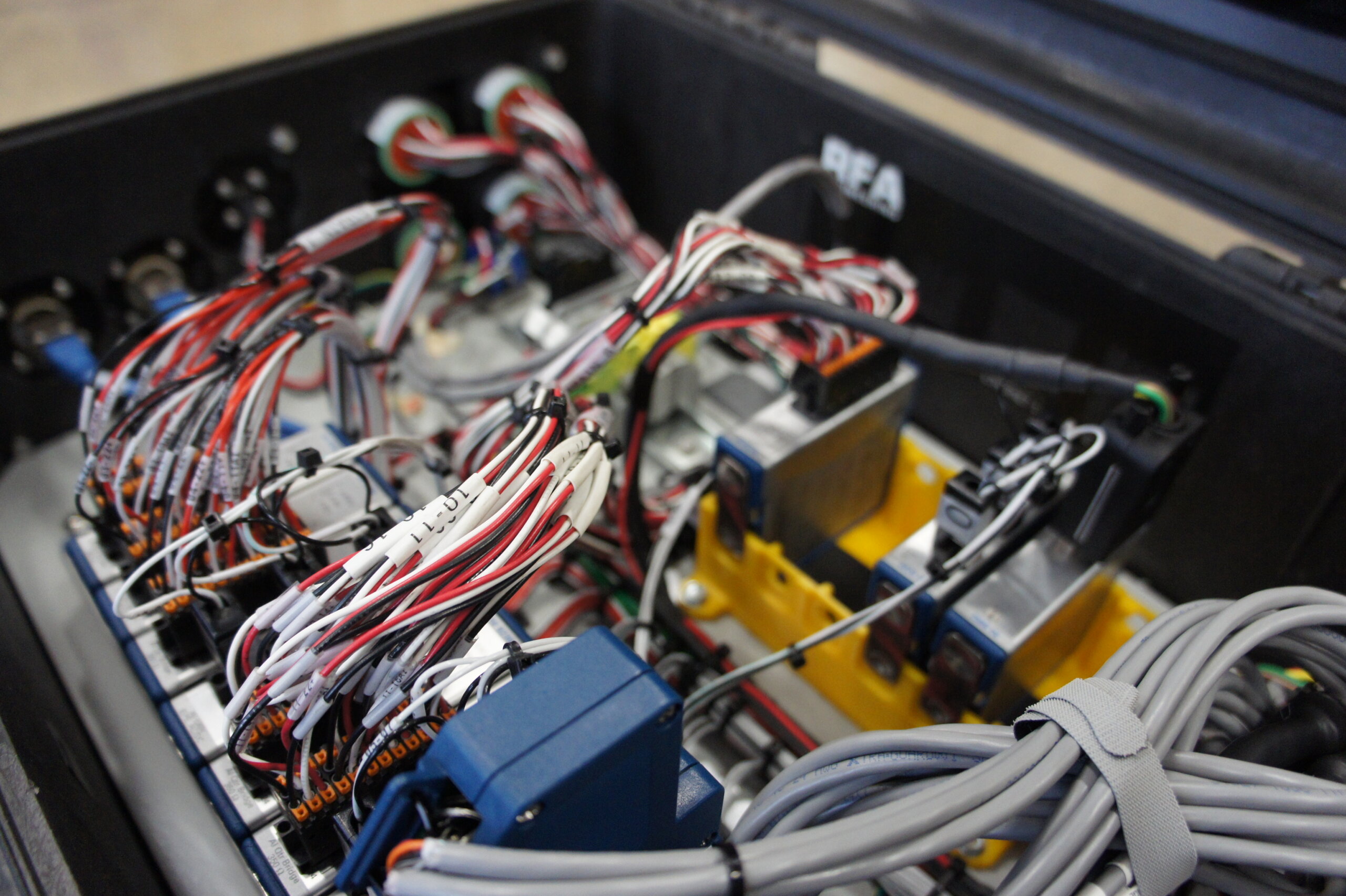

Mess of colorful electrical wires and connectors inside an open equipment cabinet

Build. Test. Refine.

Prototype harnesses give engineering teams a physical assembly that can be installed, evaluated, tested, and improved before production.

RFA’s combination of engineering, manufacturing, and testing capabilities helps create a more direct development cycle:

DESIGN → BUILD → TEST → REFINE → VALIDATE

Testing capabilities range from continuity and resistance testing to complex network testing, pull testing, and terminal validation.

Designed for Development Programs

Rapid prototyping can support applications including new product development, machine and vehicle electrical systems, test equipment, control systems, design validation, replacement harnesses, and electrical system upgrades.

RFA’s current wire harness operations serve applications across agriculture, construction, forestry, powersports, industrial equipment, and off-highway equipment, with the website also highlighting broader industrial and critical-system applications.

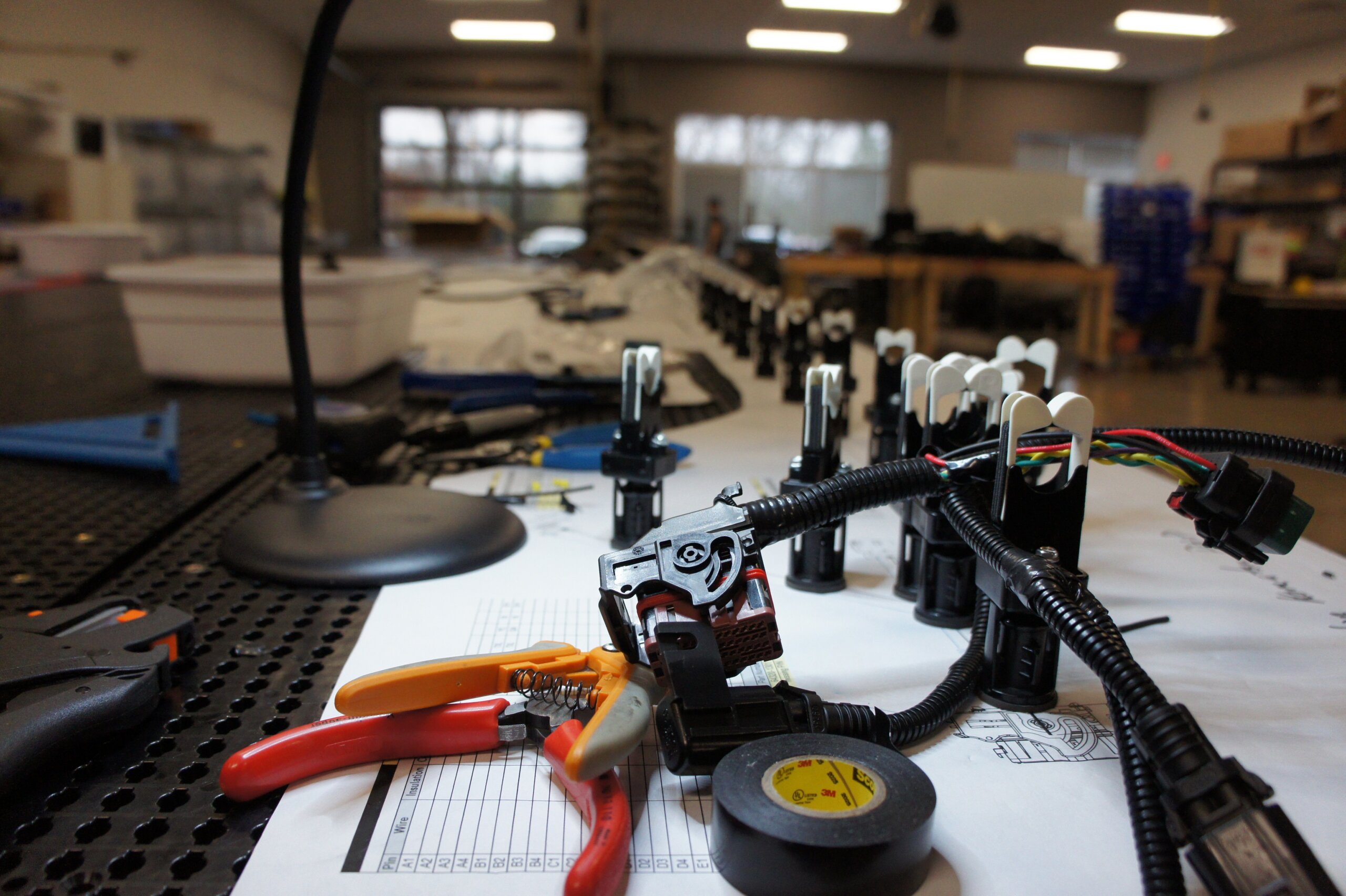

Custom wire harness with soldered connections and heat shrink tubing in prototype assembly workspace

Ready to Put Your Design to the Test?

Our team is ready to discuss your prototype requirements and help you build, test, and refine before committing to production.
